Below is a further description of the present invention in conjunction with the embodiments described in the specification.

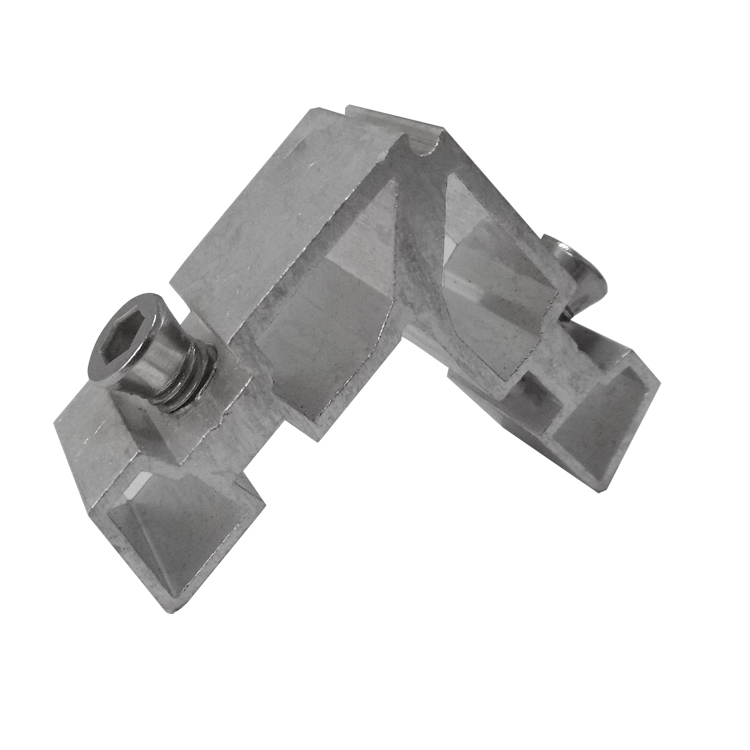

It is a three-dimensional structural diagram of an extruded aluminum alloy profile with adhesive corner code, which has the characteristics of the present invention.

Install the three-dimensional structure diagram of the adhesive corner code for the upper and lower insulation boards.

It is a three-dimensional structural diagram of an injection angle code with connecting plate holes and adhesive filling grooves, which has the characteristics of the present invention.

Stereoscopic structure diagram of adhesive corner code embedded with right angle thickness adjustment piece.

It is a three-dimensional structural diagram of an injection molded corner code with connecting plate holes and two fixed ends embedded with upper and lower buckle covers, which has the characteristics of the present invention.

Inlaid buckle cover.

Glue corner code installation three-dimensional structural diagram.

As shown in the three-dimensional structure diagram of an extruded aluminum alloy profile with adhesive corner code, the three-dimensional structure diagram of the adhesive corner code for installing upper and lower insulation boards. Among them: 1 is a right angled corner code, 2 is a connecting plate, 3 is a connecting plate hole, 4 is a rubber outer filling groove, 5 is a rubber inner filling groove, 6 is a rubber upper filling groove, 7 is a rubber lower filling groove, 8 is the upper fixed end, 9 is the upper fixed end weight reduction hole, 10 is the extruded upper fixed groove, 11 is the lower fixed end, 12 is the lower fixed end weight reduction hole, 13 is the extruded lower fixed groove, 14 is the inner upper insulation board, 15 is the inner lower insulation board, 16 is the outer upper insulation board, and 17 is the outer lower insulation board.
