哈德沃角码

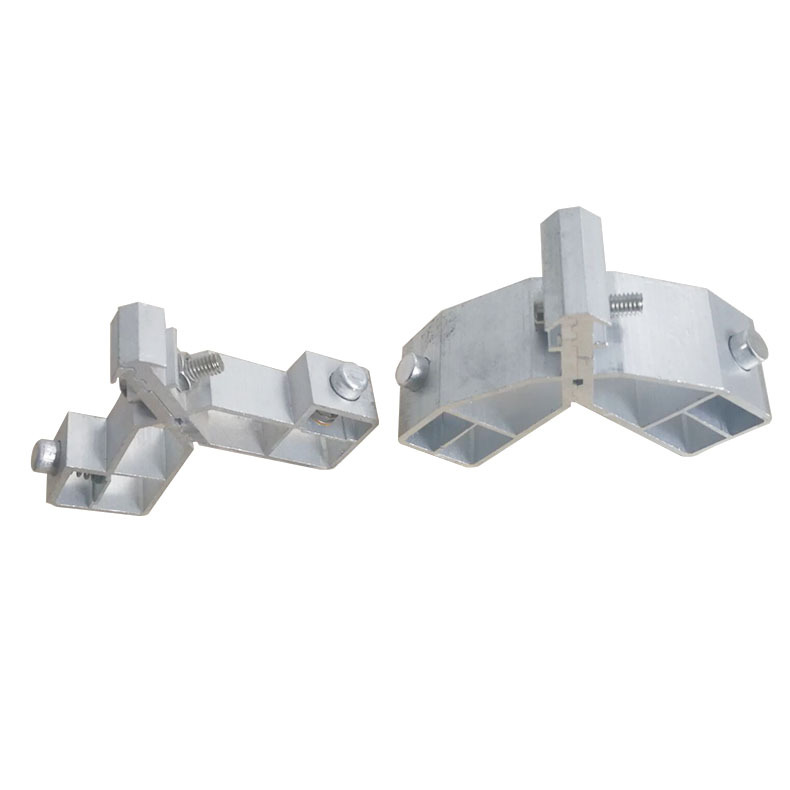

The adhesive corner code frame curtain wall uses a closed beam and column connection structure, including an aluminum alloy column, a closed beam, and a spring pin. An inner clamp foot is provided on the front end face of the aluminum alloy column to fix the hollow glass, and a connection hanging code is also included. One end of the connection hanging code is fixedly connected to the front end face of the aluminum alloy column through a screw.

One end is connected horizontally to the inner wall of the front end of the closed crossbeam, and the spring pin is connected horizontally to the inner wall of the rear end of the closed crossbeam and the side of the aluminum alloy column This utility model fixes the connection hanging code on the aluminum alloy column with screws, inserts the connection hanging code into the inner wall of the front end of the closed crossbeam, so that the closed crossbeam cannot rotate up and down. The glue corner code is injected, and a spring pin is arranged at the rear of the closed crossbeam, so that the closed crossbeam is firmly connected under the joint action of the connection hanging code and the spring pin. This not only avoids the phenomenon of the closed crossbeam falling off after installing the insulating glass, but also enhances the connection firmness between the closed crossbeam and the aluminum alloy column.
